Templates for Mirrors and Antennas

Chrysler shipped cars from the factory with the antennas (manual or power) and the rear view fender mounted mirrors (manual or remote) in boxes placed in the trunk. It was up to the dealer to install. Chrysler provided templates to the dealers so they would know where to drill holes for mounting these items. After the first few installations, technicians didn't use the templates and if you compare antenna and mirror locations on cars, you will see significant difference in locations.

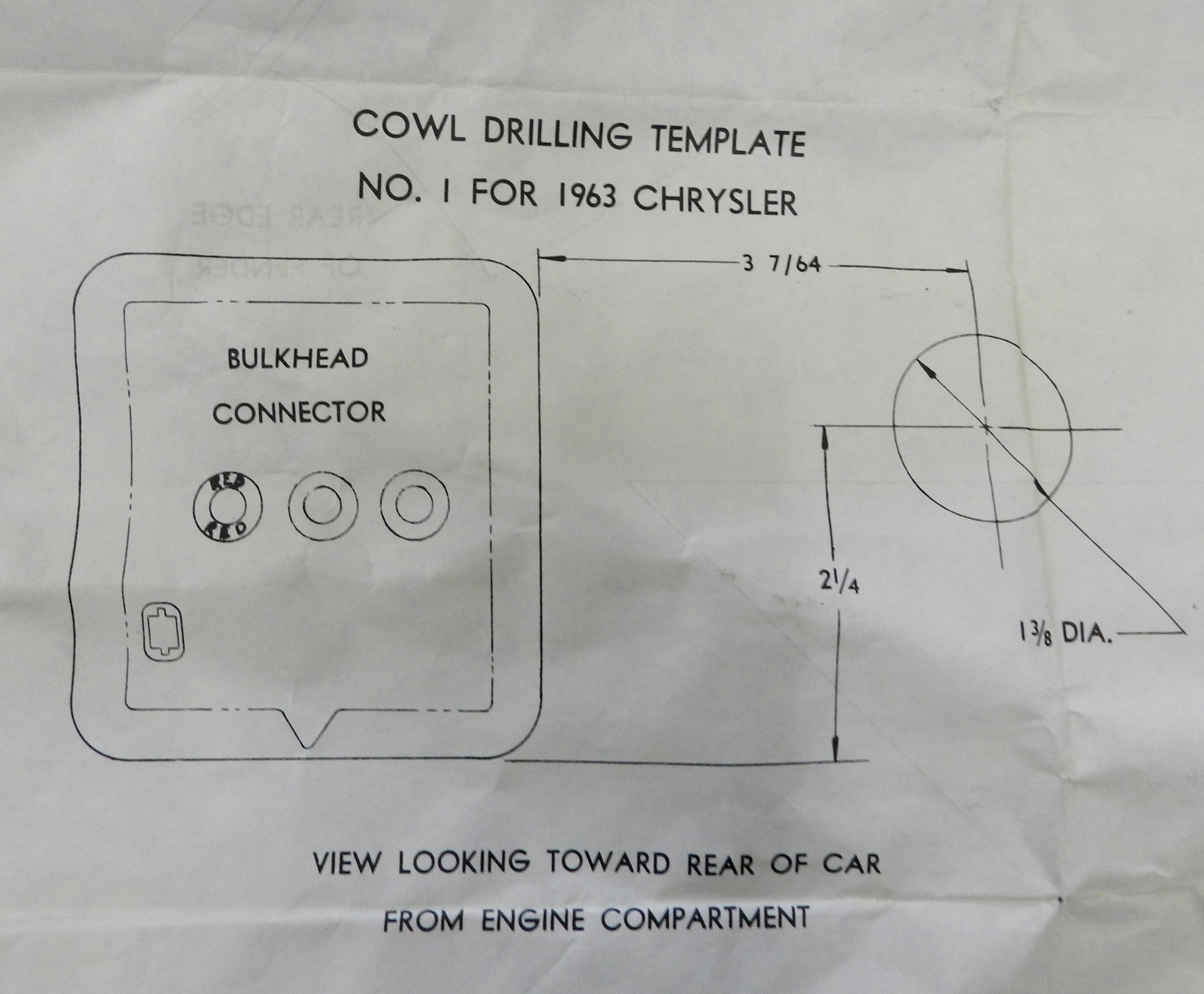

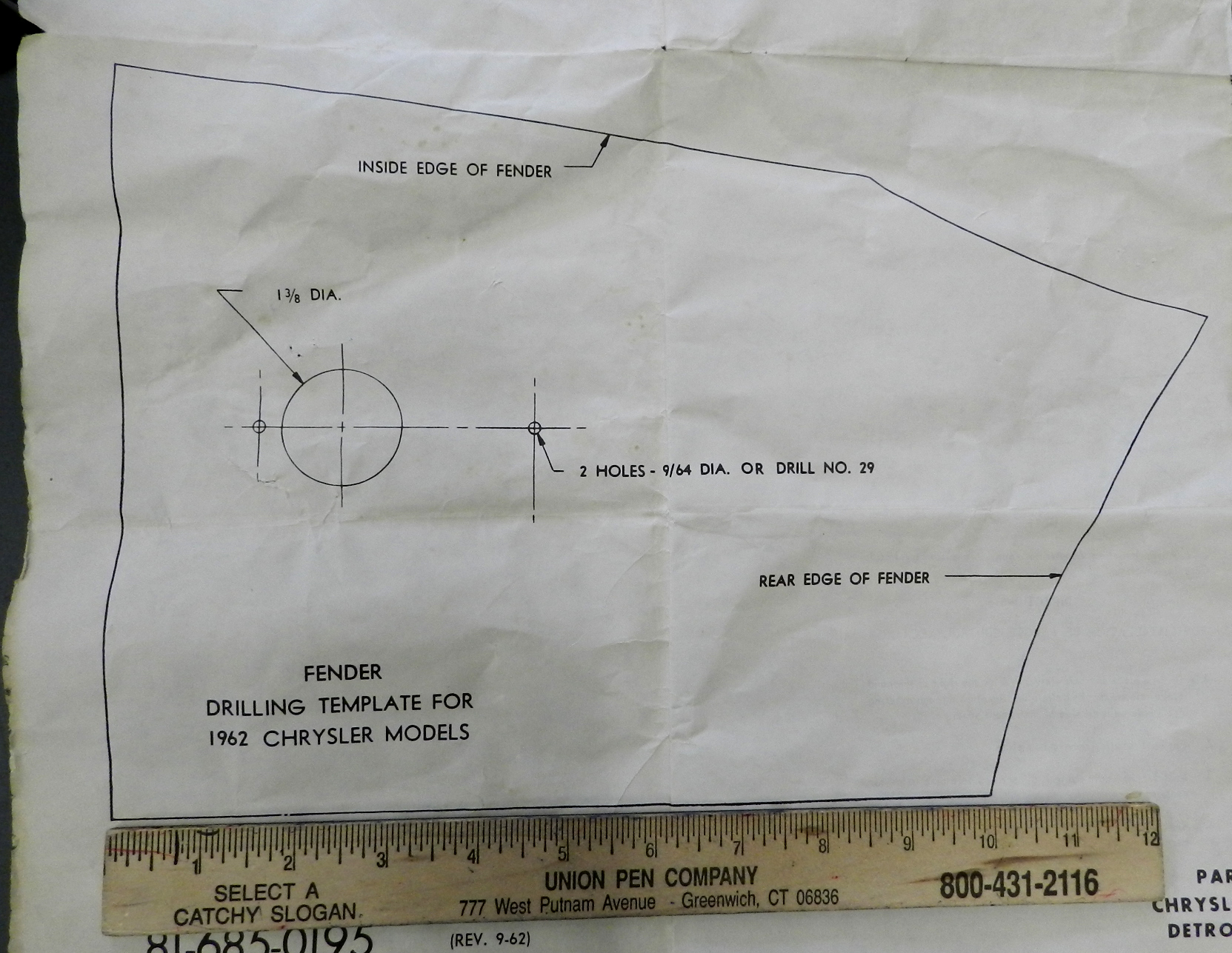

Don Cole supplied the templates you see here. I have included pictures of the full print as well as segments so you can enlarge and print as necessary.

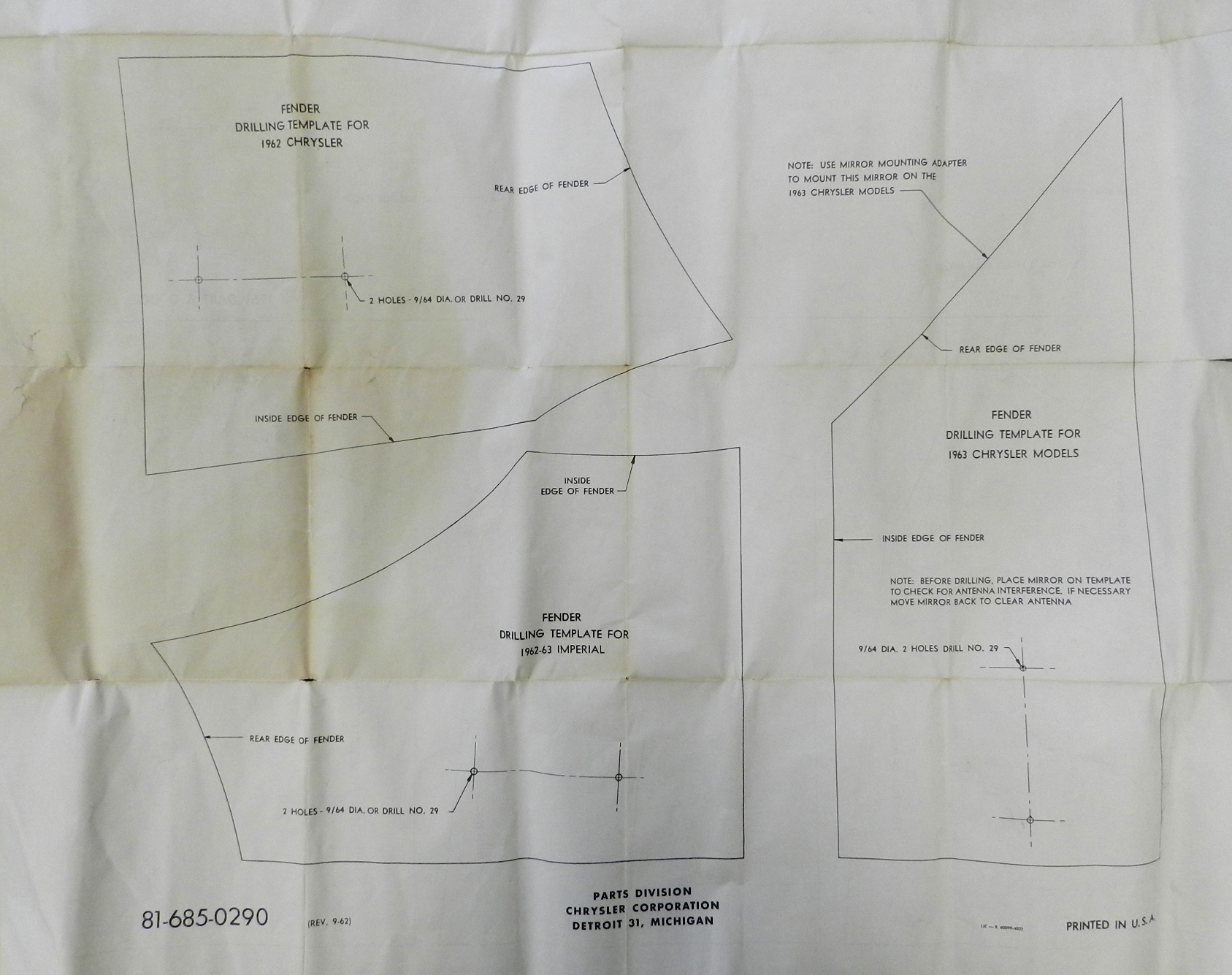

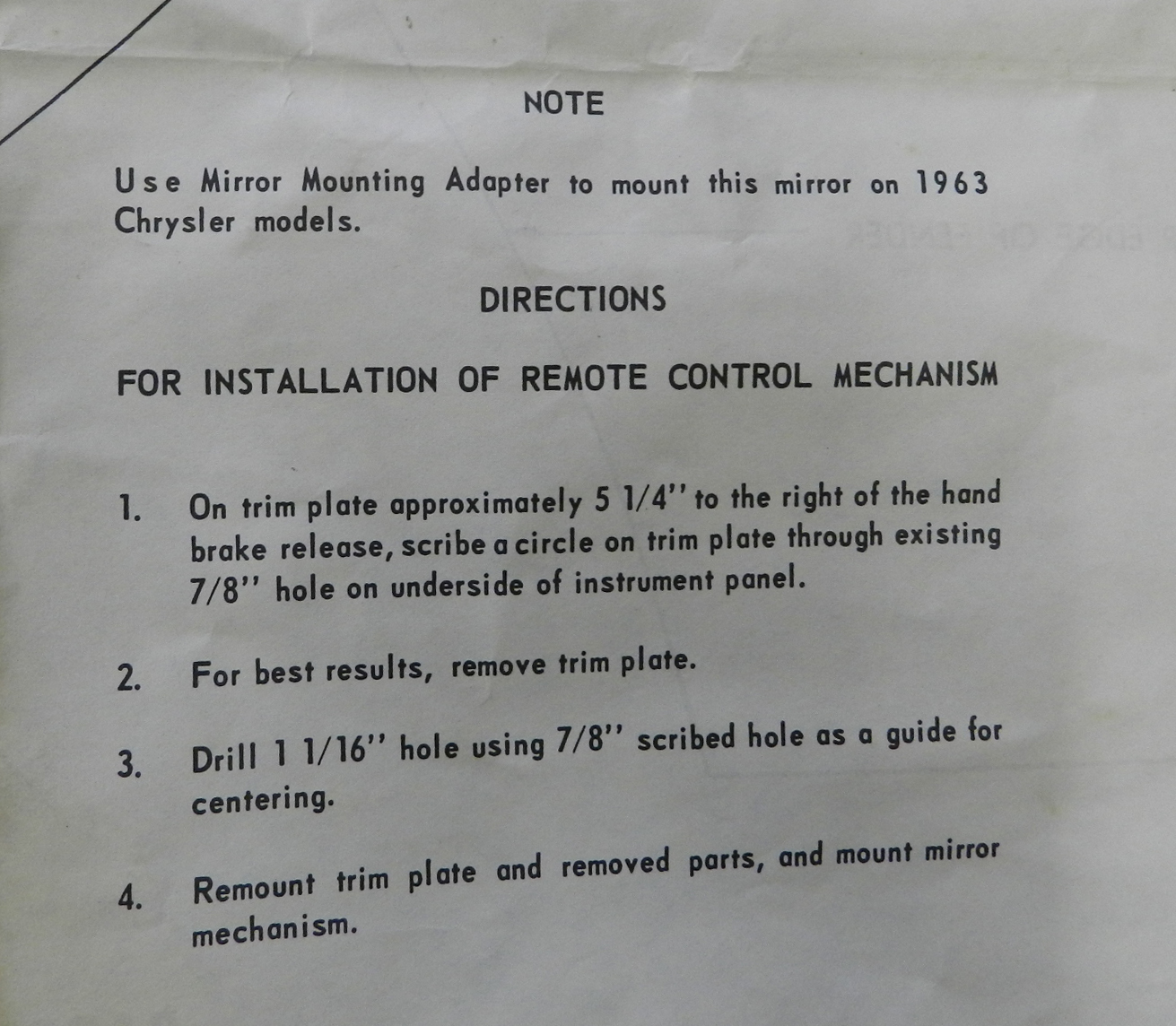

Main print Remote Mirror Install 1962 Plymouth Dodge Chrysler Imperial and 1963 Chrysler
