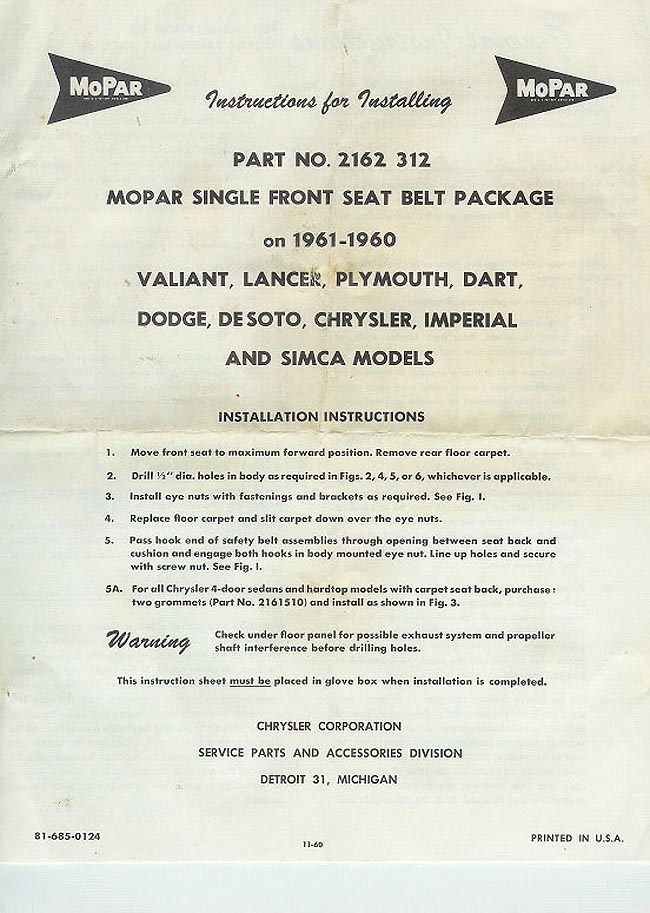

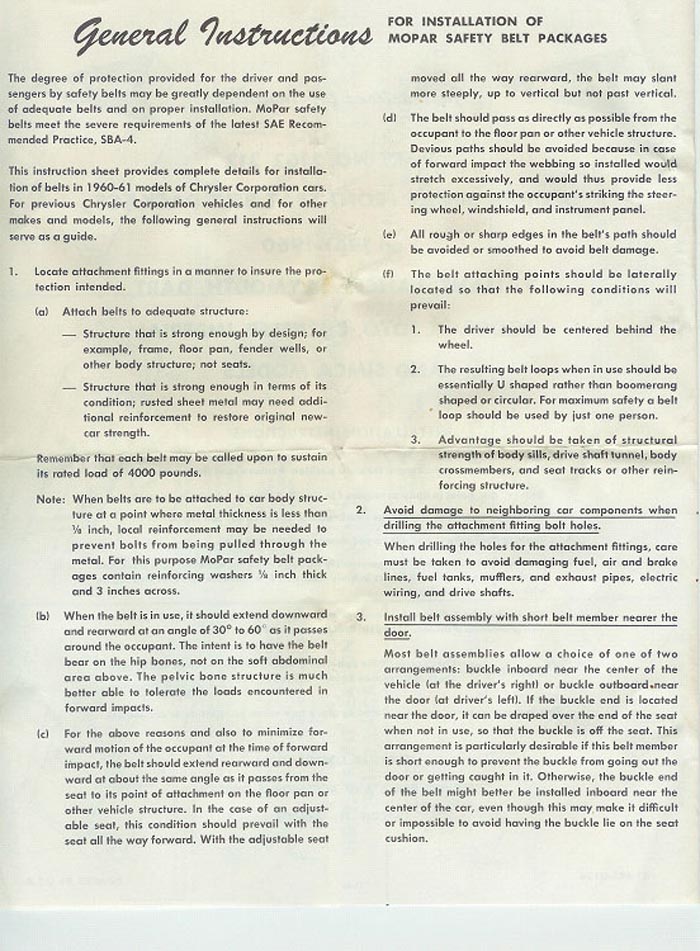

In case you can't read the typing Sister hooks (Part of Safety Belt Assembly) Eye nut Washer 1/2" dia hole Body bracket or frame Hex head bolt Reinforcement and stud used where no body frame is available under the floor panel. Flatten and/or cut off reinforcement when space or clearance requires. Seat Belt Fastenings Attachment of buckle and webbing assemblies to body Engage both hooks in body mounted eye Screw Self locking nut Line up holes and fasten sister hooks together with screw and locknut Warning Screw and nut must be installed to prevent unintended disengagement of sister hooks.

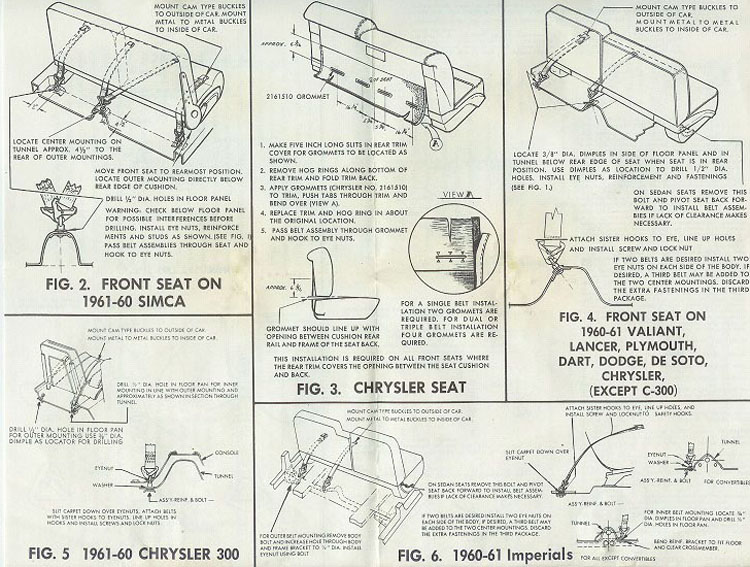

Figure 5 Detail

Mount cam type buckles to outside of car.

Mount metal to metal buckles to inside of car.

Drill 1/2" diameter hole in floor pan for inner mounting in line
with outer mounting and approximately as shown in section through tunnel.

Drill 1/2" diameter hole in floor pan for outer mounting. Use 3/8" dia. dimple as locator for drilling.

Eyenut	console
Washer	Tunnel
Assy and bolt

Slit carpet down over eyenuts. Attach belts
with sister hooks to eyenuts. Line up holes in
hooks and install screws and lock nuts.
