Chrysler Engine Fan Summary



Gil Cunningham prepared this summary
from the AMA specs, Parts Books, and the factory service manuals.

Revised Jan 20, 2008



Year

Fan

Blades

Fan

Diameter

Fan

Drive

1955

4

18"

Direct

1956 B

4

18

Direct

1956 B with AC

6

18

Direct

1957 C

6

18

Non-thermal

1957 C with AC

6

18

Non-thermal

1958 D

5

18

Non-thermal

1958 D with AC

5

18

Non-thermal

1959 E

5

18

Non-thermal

1959 E with AC

5

18

Non-thermal

1960 F

7

18

Non-thermal

1960 F with AC

7

18.5

Non-thermal

1961 G

7

18

Non-thermal

1961 G with AC

7

18.5

Non-thermal

1962 H

4, 7 optional (*)

18

Non-thermal

1962 H with AC

4, 7 optional (*)

18

Non-thermal

1963 J

7

18

Non-thermal with a running change to thermal

1963 J with AC

7

18

Non-thermal with a running change to thermal

1964 K (**)

7

18

Direct

1964 K with AC

7

18

Thermal

1965 L

4

18

Direct

1965 L with AC

7

18.5

Thermal

(*) I don't really believe this but this is what is listed on the AMA specs.

(**) All ram Ks used the 7 blade 18 Thermal

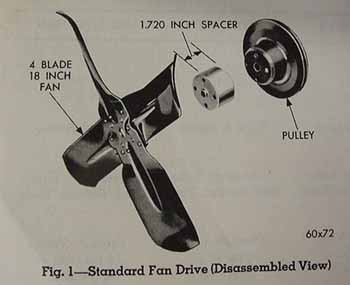

direct Direct drive

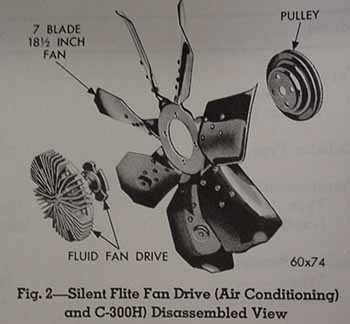

nonthermal Non-thermal drive
thermal Thermal drive
