Short Ram Exhaust Header

Thanks to Jeff Miklas for this information.

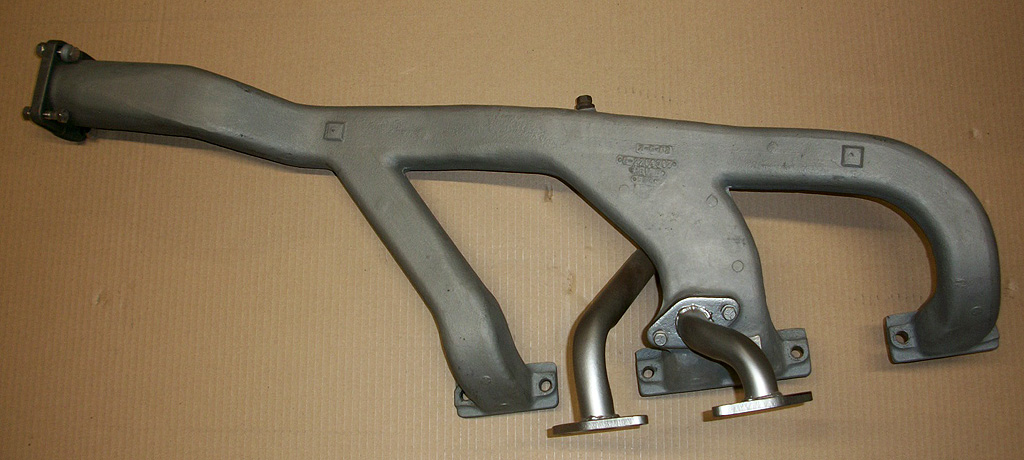

Left side header

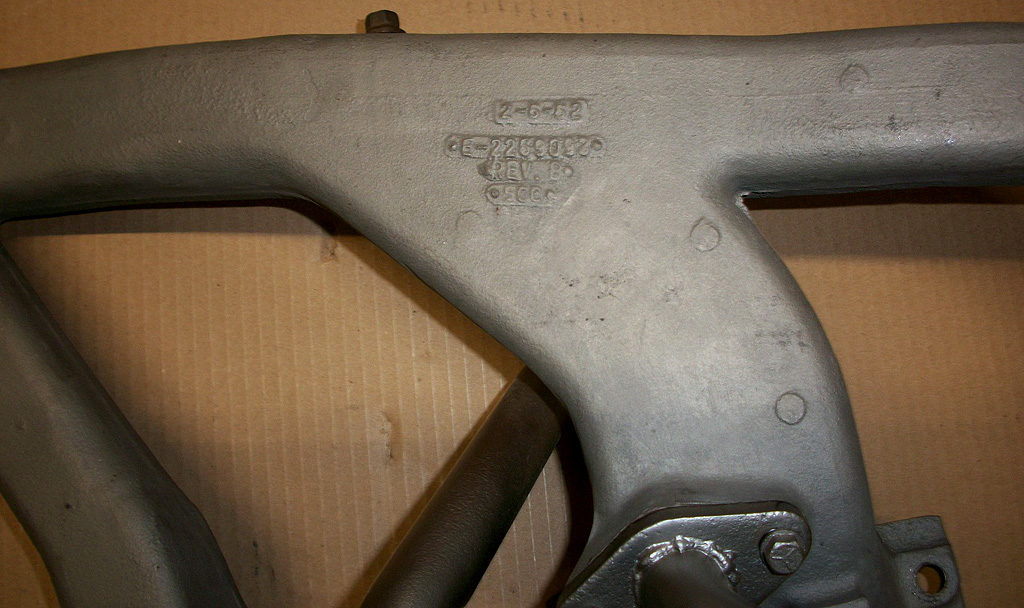

Left side header closer view

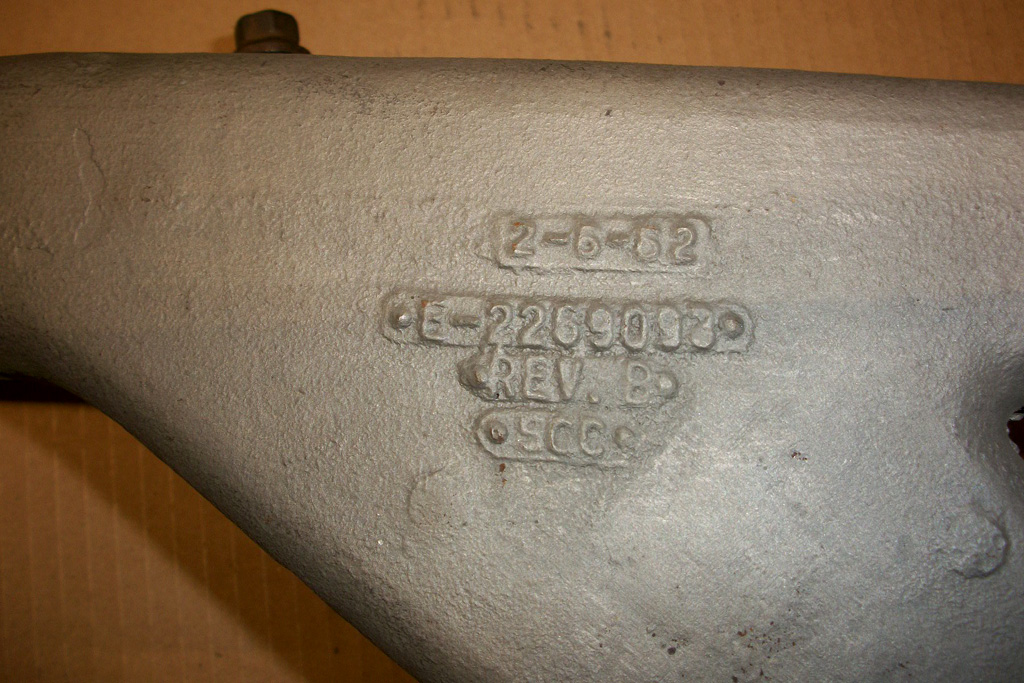

Left side header much closer view
2-6-62
E-2269093
REV. 8 (or B?)
SCC

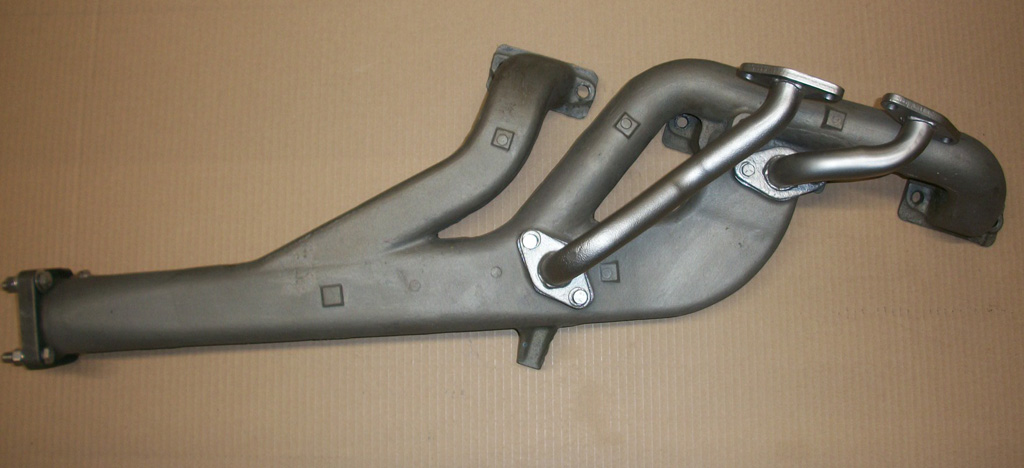

Right side header view


Right side header view

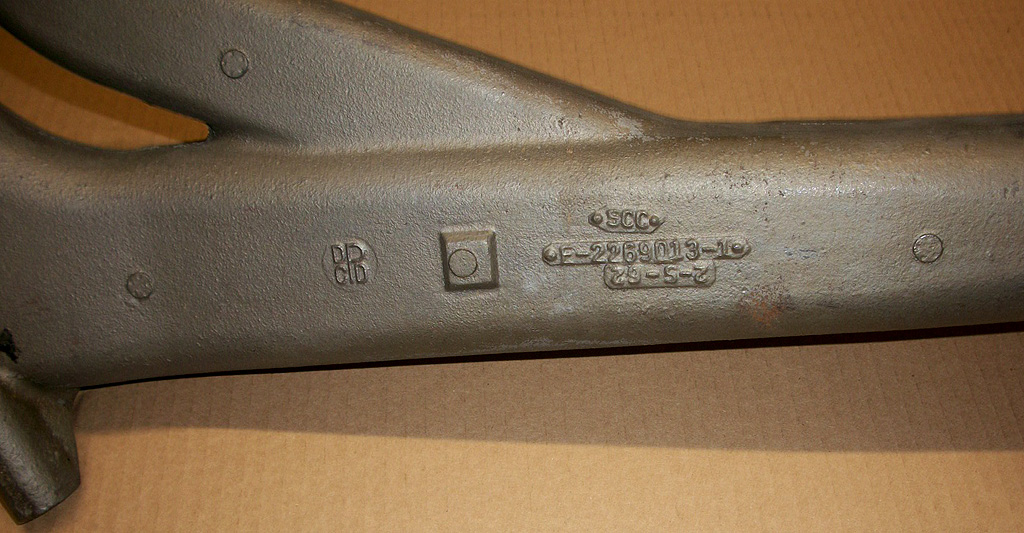

Right side header closer view

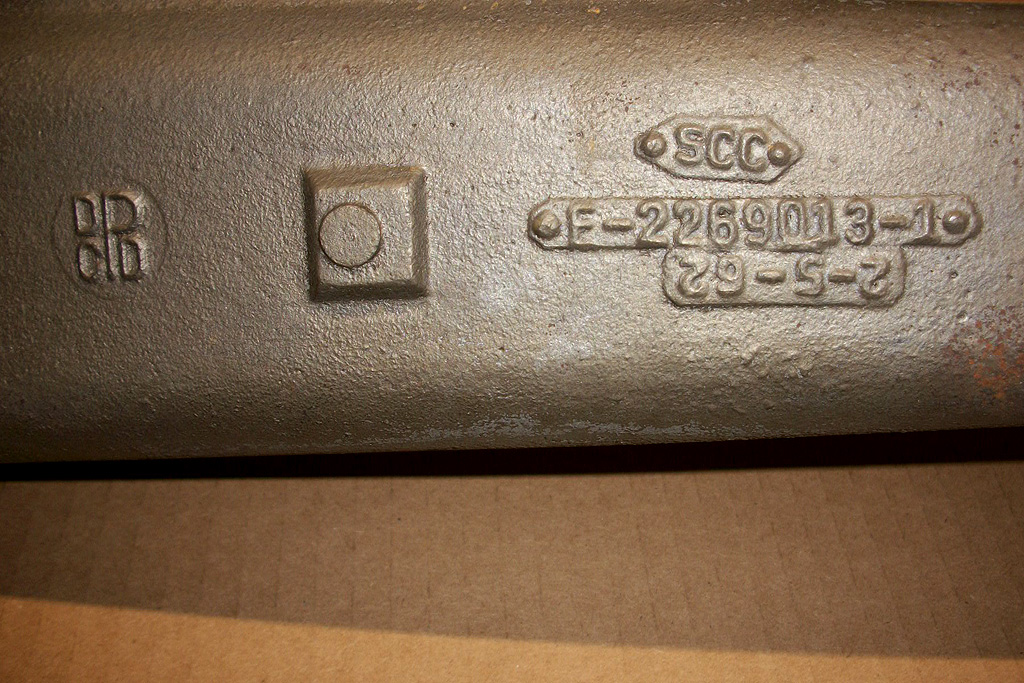

Right side header much closer view
SCC
E-2269013-1
2-5-62




Exhaust headers from Bud Faubel's Daytona G

They are different than J/ramK. The left side collector tubes are very similar but the main tube is notably wider diameter and a little shorter so that it doesn’t appear that it would snake down past the torsion bar (F/G also longer wheel base than J/ram K of course).
The right side has more apparent differences in the casting from J/ram K with the combined tubes for #2,#4,#6 exhaust ports.

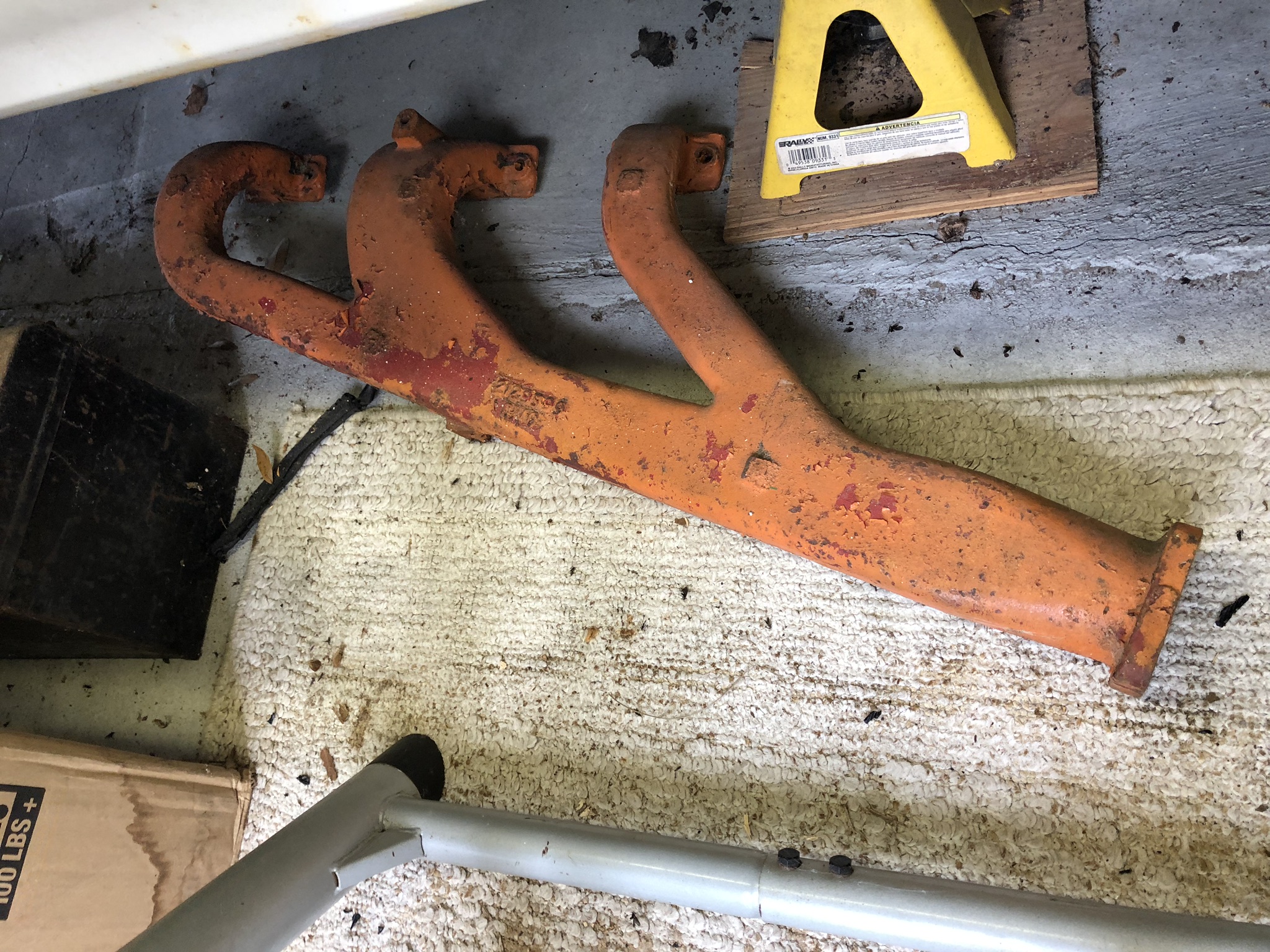

Left side exhaust header 300G Daytona

Right side exhaust header 300G Daytona
